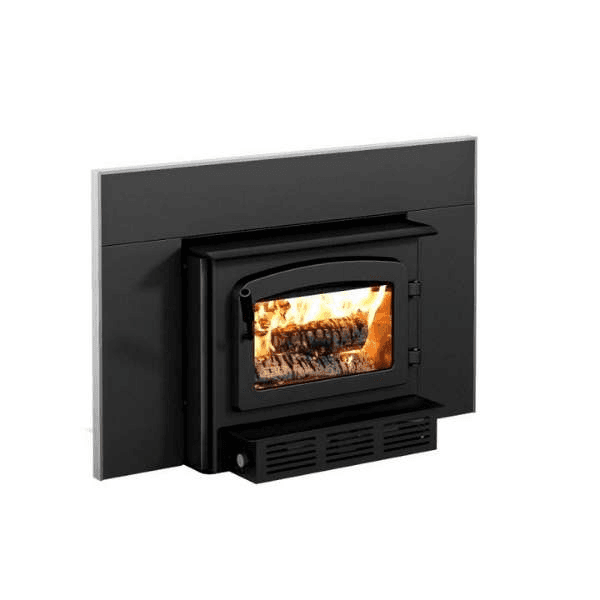

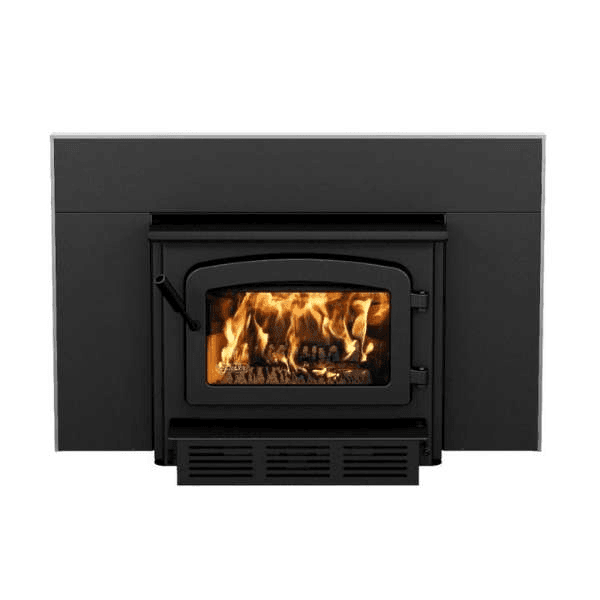

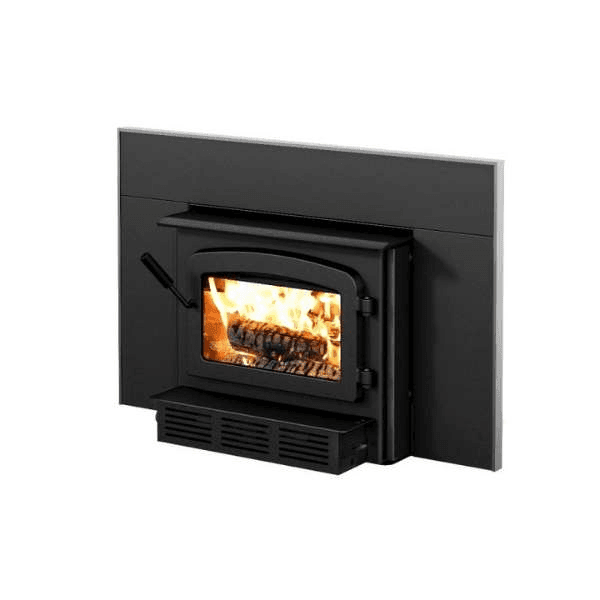

Drolet Escape 1800-i Wood Burning Fireplace Insert Trio (25-35 Ft)
Get the Perfect Heat for Your Needs With the Drolet Escape 1800-I Wood Insert!
Bring the cozy comfort of a wood-burning fireplace to your home with the Drolet Escape 1800-i Wood Burning Fireplace Insert! This efficient and EPA-certified appliance is ideal for heating up to 2,100 ft², making it perfect for larger spaces. Plus, its clean burning design emits only 1.54 g/h of particulate emissions, making it a safe and eco-friendly choice. Upgrade your masonry fireplace today with the Drolet Escape 1800-i Wood Burning Fireplace Insert!
Included: 6” liner kit (25′ or 35′ Vortex flexible stainless steel liner, connector, 13” x 13” top plate, chimney cap with no screen), 32” x 50” faceplate with brushed nickel trim, blower, ceramic glass, ash lip, air damper
Options: firescreen, fresh air intake
When you purchase a Drolet Escape 1800-i, you qualify to receive a federal tax credit of up to 26% of the cost installation AND equipment. Read more about it here.
This product will begin shipping out on January 7, 2026. This ETA is true across all online retailers. Place your order with us for the fastest fulfillment speed.
Have questions about this wood stove? Call at 888-671-4611 or live chat with an agent now.
Drolet Escape 1800-I Wood Insert Trio Features:
Burn time up to 8 hours
Up to 20” logs
2.4 ft³ firebox
Robust 5/16” steel
EPA certified
Proudly made in Canada
Limited lifetime warranty
Firebox lined with refractory bricks for better heat distribution
Optimum efficiency : 77 %
Average particulate emissions rate : 1.54 g/h
Steel thickness – top : 5/16″
High-efficiency certified appliance : Yes, EPA 2020 approved
Recommended heating area-ft² : 500 – 2,100
Blower included
[split]
Drolet Escape 1800-I Wood Insert Trio Specifications:
Fuel type
Dry cordwood (16″ recommended)
Recommended heating area-ft²
500 – 2,100
Overall firebox volume-ft³
2.4
EPA loading volume-ft³
2.02
Maximum burn time
8 h
Maximum heat output-dry cordwood
75,000 BTU/h (22.0 kW)
Overall heat output rate
14,800 BTU/h (4.34 kW) to 28,600 BTU/h (8.38 kW)
Average overall efficiency (dry cordwood)
69 % (HHV) – 74 % (LHV)
Optimum overall efficiency
77 %
Optimum heat transfer efficiency
75 %
Average particulate emissions rate
1.54 g/h
Average CO
89.4 g/h
Combustion technology
Non-catalytic
High-efficiency certified appliance
Yes, EPA 2020 approved
Maximum log length
20″
Log positioning
Loading over width
Chimney diameter
6″
Type of chimney
Liner – ULC-S635, CAN/ULC-S640, UL1777
Minimum chimney height (feet)
12′
Baffle type
High quality vermiculite
Approved for a mobile home installation
No
Shipping Weight
488 lb (221 kg)
Door type
Single, glass with cast iron frame
Glass type
Ceramic glass
Glass surface – dimensions (Width X Height)
16″ X 9 1/4″
Glass air-wash system
Yes
Premium quality blower included (CFM)
144
Overall dimension (Height)
23 1/8″
Overall dimension (Width)
28 3/8″
Overall dimension (Depth)
26 3/8″
Door opening – dimension (Height)
9″
Door opening – dimension (Width)
17 1/2″
Firebox – dimension (Height)
11 7/8″
Firebox – dimension (Width)
21″
Firebox – dimension (Depth)
16 1/2″
Firebox lined with refractory bricks for better heat distribution
Yes
Stainless-steel secondary-air system improving gas combustion
Yes
Adjustable threaded legs
Yes
Steel thickness – body
3/16″
Steel thickness – top
5/16″
Fireplace opening – minimum (Height)
23 3/8″
Fireplace opening – minimum (Width)
28 7/8″
Fireplace opening – minimum (Depth)
15 3/4″
USA standard (emissions)
EPA / ASTM WK47329
Canadian Standard (emissions)
CSA B415.1-10
USA standard (safety)
UL 1482, UL 737
Canadian standard (safety)
ULC S628
Tested and listed as per applicable standards
By an accredited laboratory (CAN/USA)
Warranty
Limited lifetime
Drolet Escape 1800-I Wood Insert Trio Clearance Requirements:
Clearance – top (measured from the platform on which the appliance is installed)**
84″
Clearance – combustible side mantle to unit
9″
Clearance – combustible top mantle to unit
27″
Clearance – combustible side wall to unit
16″
Clearance – minimum floor protection in front of the appliance
16″
Clearance – from the top of the unit to the shelf
Clearance – from the top of the insert to the shelf
27″
Drolet Escape 1800 Insert Manual:
Click Here for Installation Manual
Drolet Escape Wood Insert Trio DB03127K Specification Sheet:
Click Here for Dimensions
